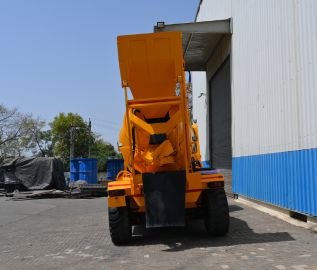

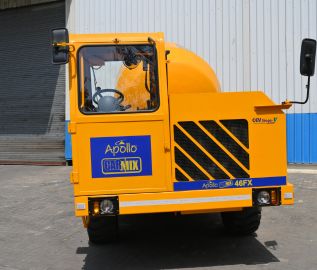

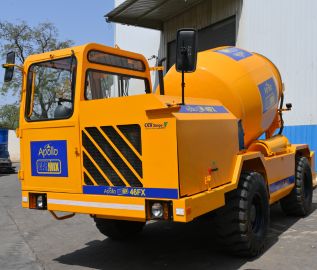

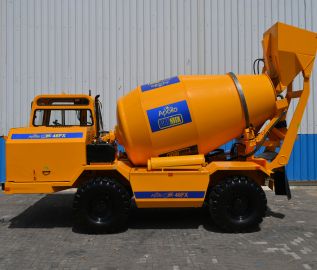

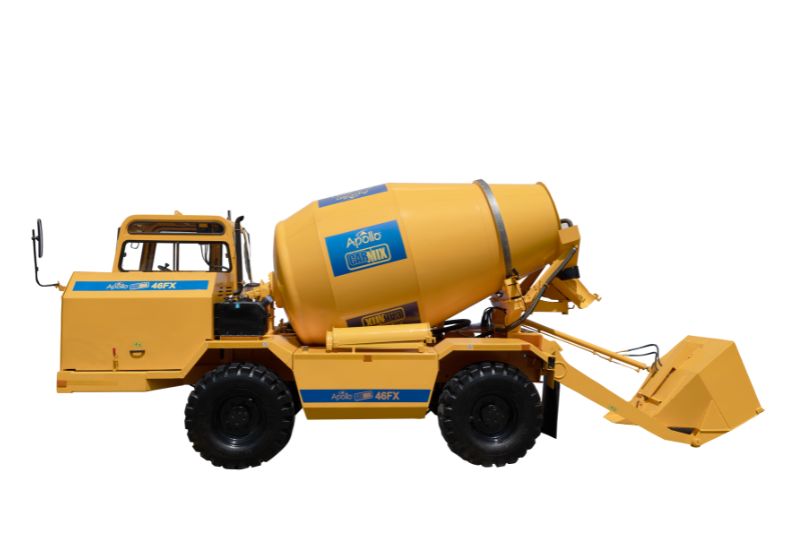

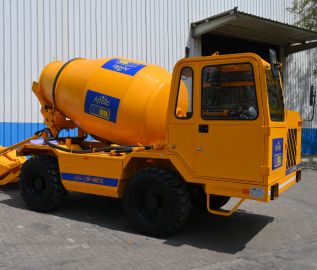

Apollo Carmix 46 FX

SALIENT FEATURES OF SELF LOADING CONCRETE MIXER

  • Double Helical Arrangement with low inclination of drum for better mixing.

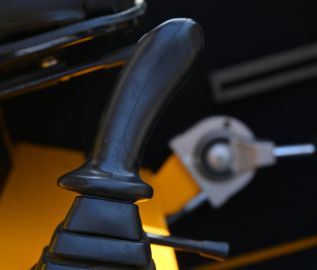

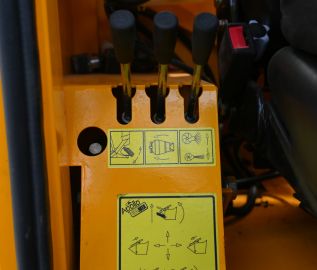

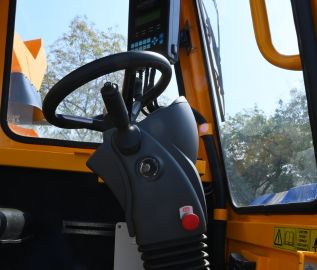

  • Height and inclination angle adjustable Ergonomic Panel, comfortable for operator.
  • Easily Accessible Engine compared to various other mixers available in the market.
  • V- Shape articulated bucket with Hydraulic Shutter Gate to avoid spillage & better loading.

OPTIONAL :

  • IOT
  • Rear View Camera & Display

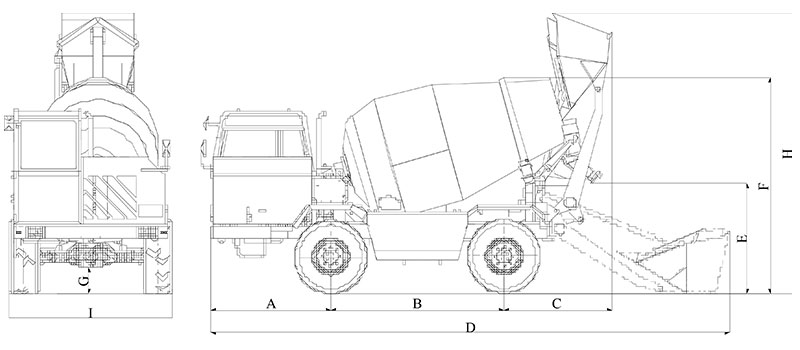

Self Loading Mixer 46FX Diagram

Self Loading Mixer 23FX Diagram
46 FX(mm)
A 1810
B 2600
C 1610
D 7780
E 1600
F 3210
G 390
H 4200
I 2440

Download Brochure (PDF) Self Loading Mixer 45FX

Download

Product Specifications - Self Loading Mixer 46 FX

  • Chassis:
    Steel profile specially engineered for off-road

  • Mixing Unit:
    Concrete output @90 to 95% of the rated capacity
    Drum Volume : 6235 ltrs.
    Capacity per batch : 4.6 Cu.M
  • Engine:
    Mahindra & Mahindra
    Model : MCVNC35TI112CE5
    Ratings : 112 HP@2200 rpm
    Water cooled, Turbo Charged
  • Speed (Electric Servo Control):
    Working Speed : 0 to 9 Kms/hr
    Road Transfer : 0 to 26 Kms/hr
  • Loading Shovel:
    600 ltrs
  • Tyres (Off Road Type):
    Size : 16/70-20 PR 16
  • Steering:
    Hydraulic. 3 Way.
    Radius (external) : 4800 mm
  • Tanks (Capacities):
    Water : 2x580 ltrs
    Diesel : 130 ltrs
    Hydraulic Oil : 85 ltrs
  • Weight:
    Equally distributed on both axles
    7790 Kgs.
  • Electric System:
    12 Volt. 180 Ah
    battery for electric starter and road lighting. Safety battery cut-off.
  • Chute:
    Slewing and hydraulically tilting
  • Water System:
    Self contained Water Pump, Water Meter, Washing Outlet.
  • Gradient:
    Fully loaded 30% (16-18 degrees)
  • Driving Seat:
    Reversible seat with automatic inversion of hydraulic steering circuit

FAQs - Self Loading Mixer 46 FX

The Apollo Carmix 46 FX offers numerous advantages, including a high capacity of 4.5 cubic meters per batch, user-friendly operation, precise electronic weighing system, and efficient loading and mixing processes. It ensures high-quality concrete production on-site, reduces labor costs, and improves project timelines.

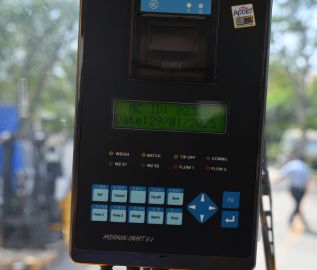

The Apollo Carmix 46 FX Self Loading Mixer operates by using a self-articulated hydraulically operated shovel to load aggregates and cement into the drum. The materials are mixed in the drum, and the concrete is discharged through a hydraulically tilting chute. The machine features an electronic weighing system to ensure precise mixing and high-quality concrete output.

Key features of the Apollo Carmix 46 FX include a 4.5 cubic meter capacity per batch, compact and economical design, low maintenance cost, 4-wheel drive and steer, electronic weighing system with printer, high-pressure washing system, oil-bath built-in disc brakes, and a fully balanced design. It also offers efficient and reliable after-sales service.

The Apollo Carmix 46 FX is ideal for small to medium-sized construction projects due to its high capacity, user-friendly operation, and efficient performance. It provides precise concrete mixing, reduces labor costs, and ensures consistent quality, making it a practical and economical choice for various construction sites.

The price of the Apollo Carmix 46 FX concrete mixer machine varies depending on specific configurations and additional features required. As a leading manufacturer in India, Apollo Carmix offers competitive pricing and high-quality equipment, ensuring excellent value for investment. For the best price, it is recommended to contact Apollo Carmix directly or visit their official website.

Apollo Carmix is a leading manufacturer of concrete mixer machines in India due to its commitment to quality, innovation, and customer satisfaction. They use top-quality components, offer advanced features like electronic weighing systems, and provide reliable after-sales service. Their products are designed to meet the needs of various construction projects, ensuring efficient and high-quality concrete production.
