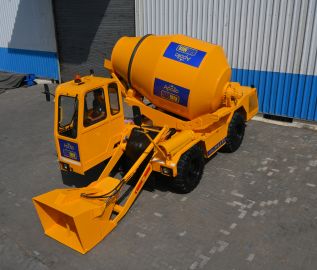

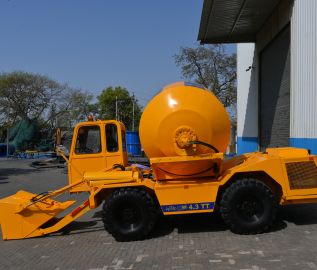

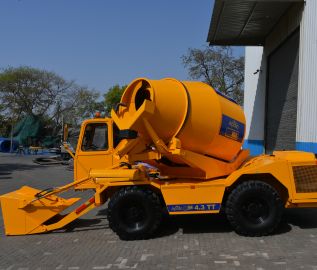

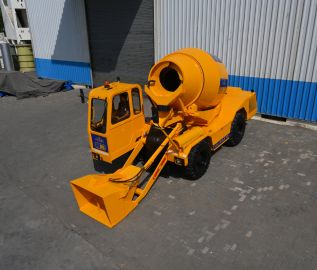

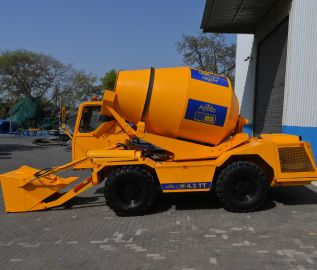

Apollo Carmix 4.3TT

SALIENT FEATURES OF SELF LOADING CONCRETE MIXER

  • 270° Drum Rotation to discharge concrete on all 4 sides of the machine.
  • Joystick Operations for all main functions of loader for operators ease.
  • Easily Accessible Engine compared to various other mixers available in the market.
  • Ground control through Remote for Drum Swivel, Drum Mixing & Discharge, Discharge Chute Up/Down and Auto Water Cutoff as per requirement. (4.3 TT only)

OPTIONAL :

  • IOT
  • Rear View Camera & Display
  • Loadcell (4.3 TT)

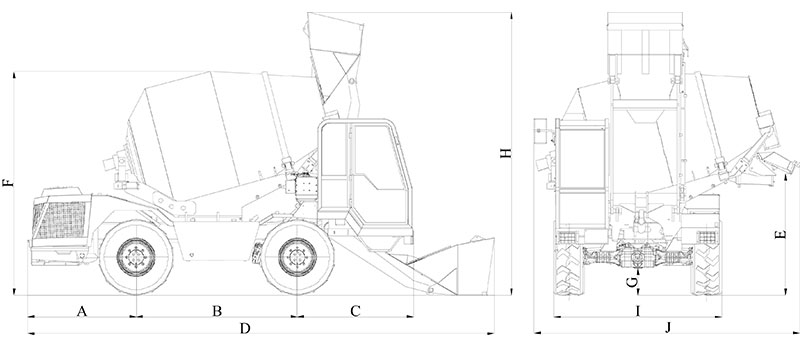

Self Loading Mixer 4.3TT Diagram

Self Loading Mixer 23FX Diagram
4.3 TT(mm)
A 1620
B 2380
C 1720
D 6910
E 1630
F 3290
G 395
H 4200
I 2440
J 4000

Download Brochure (PDF) Self-Loading Concrete Mixer

Download

Self-Loading Concrete Mixer 4.3TT Specifications

  • Chassis:
    Steel profile specially engineered for off-road operations.
  • Mixing Unit:
    Concrete Output
    Drum Volume : 5800 ltrs.
    Capacity per batch : 4.0 Cu.M
    (@90 to 95% of the rated capacity)
  • Engine:
    Mahindra & Mahindra
    Model : MCVNC35TI112CE5
    Ratings : 112 HP@2200 rpm
    Water cooled, Turbo Charged
  • Speed (Electric Servo Control):
    Working Speed : (0 to 9 Kms/hr)
    Road Transfer : (0 to 26 Kms/hr)
  • Loading Shovel:
    600 ltrs
    with hydraulically operated shutter gate
  • Tyres:
    Off Road Type
    Size : 16/70-20 PR 16
  • Steering:
    Hydraulic. 3 Way.
    Radius (internal) : 1882 mm
    Radius (external) : 4800 mm
  • Tanks (Capacities):
    Water : 2x400 ltrs
    Diesel : 115 ltrs
    Hydraulic Oil : 80 ltrs
  • Weight:
    Equally distributed on both axles
    8060 Kgs.
  • Electric System:
    12 Volt. 180 Ah battery for electric starter and road lighting.
    Safety battery cut-off.
  • Chute:
    Slewing and hydraulically tilting.
  • Water System:
    Self contained Water Pump, Water Meter, Washing Outlet.
  • Gradient:
    Fully loaded 30% (16-17 degrees)
  • Driving Seat:
    Front Cabin on loading shovel-side ROPS-FOPS cabin with double
    closing door.
  • Joy Stick Operation:
    All hydraulic functions of shovel controlled by a single fully servo controlled joy stick.

FAQs - Self-Loading Concrete Mixer 4.3 TT

The Apollo Carmix 4.3TT offers several advantages, including its user-friendly operation, high capacity of 4 cubic meters per batch, precise electronic weighing system, and efficient loading and mixing processes. It is designed to reduce labor costs, improve project timelines, and ensure high-quality concrete production on-site.

The Apollo Carmix 4.3TT works by using a self-articulated hydraulically operated shovel to load aggregates and cement into the drum. The materials are then mixed in the drum, and the concrete is discharged through a hydraulically tilting chute. The machine features an electronic weighing system to ensure precise mixing and high-quality concrete output.

Key features of the Apollo Carmix 4.3TT include a 4 cubic meter capacity per batch, a front driving cab for perfect visibility, a self-articulated shovel, a discharging chute with hydraulic slewing and tilting, a high-pressure washing system, oil-bath built-in disc brakes, and a fully balanced design. It also has an electronic weighing system, 4-wheel drive and steer, and a robust chassis for off-road operations.

Using a Self Loading Concrete Mixer offers several benefits, including increased efficiency, reduced labor costs, and improved project timelines. The machine's ability to load, mix, and transport concrete on-site ensures consistent quality and saves time. Its compact and economical design, along with low maintenance costs, make it a practical solution for various construction projects.

The Apollo Carmix 4.3TT is an ideal solution for small to medium-sized construction projects requiring concrete. It offers user-friendly operation, precise electronic weighing, high-pressure washing for easy cleaning, and reliable performance with low maintenance costs. Its compact design and 4-wheel drive make it versatile and efficient for different construction sites.

A Self Loading Concrete Mixer is suitable for various construction applications, including small to medium-sized construction sites, remote area projects, road construction, and projects where precise and consistent concrete quality is required. Its versatility and efficiency make it a valuable asset for different types of construction projects.
