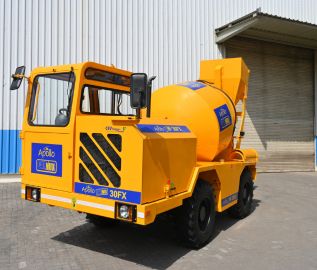

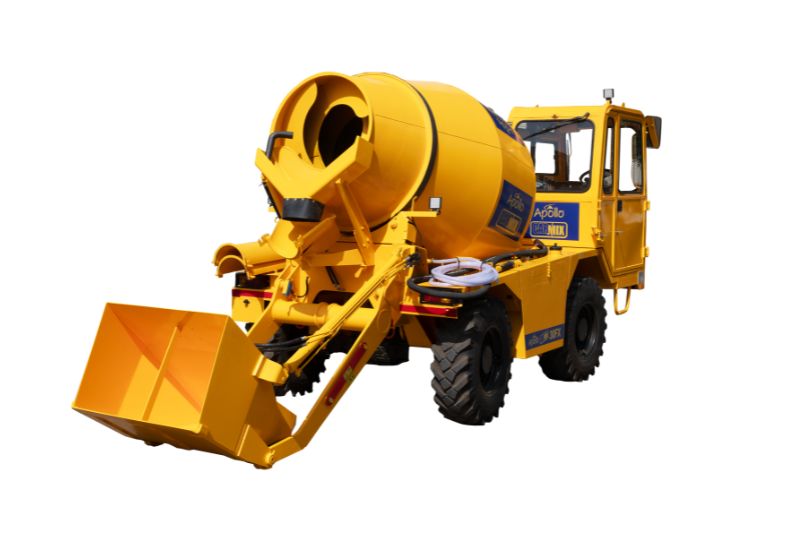

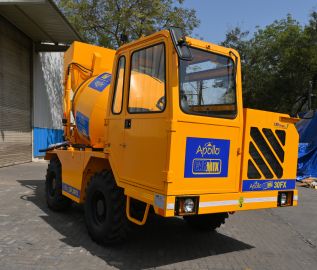

Apollo Carmix 30 FX

SALIENT FEATURES OF SELF LOADING CONCRETE MIXER

  • Double Helical Arrangement with low inclination of drum for better mixing.
  • Height and inclination angle adjustable Ergonomic Panel, comfortable for operator.
  • Easily Accessible Engine compared to various other mixers available in the market.

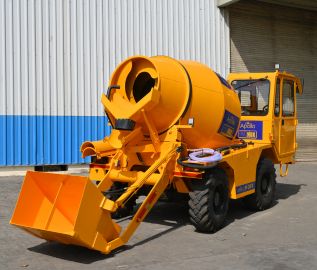

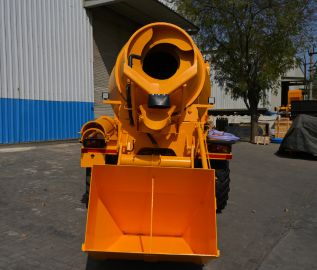

  • V- Shape articulated bucket with Hydraulic Shutter Gate to avoid spillage & better loading.

OPTIONAL :

  • IOT
  • Rear View Camera & Display

Self Loading Mixer 30FX Diagram

Self Loading Mixer 23FX Diagram
30 FX(mm)
A 1700
B 2100
C 1420
D 6710
E 1420
F 2795
G 385
H 3625
I 2190

Download Brochure (PDF) Self Loading Mixer

Download

Self Loading Mixer 30FX Specifications

  • Chassis: Steel profile specially engineered for off-road

  • Mixing Unit:
    Concrete output @90 to 95% of the rated capacity
    Drum Volume : 4080 ltrs.
    Capacity per batch : 3.0 Cu.M
  • Engine:
    Mahindra & Mahindra
    Model : MCVNC35TI074CE5
    Ratings : 74.5 HP@2200 rpm
    Water cooled, Turbo Charged
  • Speed (Electric Servo Control):
    Working Speed : 0 to 10 Kms/hr
    Road Transfer : 0 to 27 Kms/hr
  • Loading Shovel:
    400 ltrs
  • Tyres (Off Road Type):
    Size : 12.5-20 PR 12
  • Steering:
    Hydraulic. 3 Way.
    Radius (internal) : 4450 mm
  • Tanks (Capacities):
    Water : 2x275 ltrs
    Diesel : 95 ltrs
    Hydraulic Oil : 70 ltrs
  • Weigh:
    Equally distributed on both axles
    5900 Kgs.
  • Electric System:
    12 Volt. 180 Ah
    battery for electric starter and road lighting. Safety battery cut-off.
  • Chute:
    Slewing and hydraulically tilting
  • Water System:
    Self contained Water Pump, Water Meter, Washing Outlet.
  • Gradient:
    Fully loaded 30% (16-18 degrees)
  • Driving Seat:
    Reversible seat with automatic inversion of hydraulic steering circuit

FAQs for Self-Loading Concrete Mixer 30 FX

A self-loading concrete mixer is a compact and versatile machine that combines concrete batching, mixing, and transportation into one. It features a self-articulated hydraulic shovel for precise loading of aggregates and cement, ensuring a hassle-free and efficient concrete production process.

Self-loading mixers are perfect for sites where small quantities of concrete are required, such as rural construction projects, road repairs, or small-scale infrastructure works. They are cost-effective, compact, and easy to operate.

These mixers are equipped with an electronic weighing system that ensures precise measurement of materials for consistent concrete quality. Some models also feature built-in printers for batch certification.

Designed with a sturdy steel chassis, 4-wheel drive, off-road tyres, and hydraulic steering, self-loading mixers are highly capable of navigating rugged terrains and challenging construction sites.

They integrate multiple functions, such as self-loading of materials, water metering, high-pressure cleaning systems, and hydraulically tilting chutes for smooth concrete discharge, reducing the need for additional equipment and manpower.

Self-loading mixers are designed for low maintenance. Features like oil-bath disc brakes require minimal upkeep, and built-in high-pressure washing systems make cleaning the equipment quick and efficient.

Apollo combines innovative design, robust engineering, and reliable after-sales service. Their self-loading mixers are known for user-friendly operation, durability, and excellent performance in both urban and remote construction settings.
