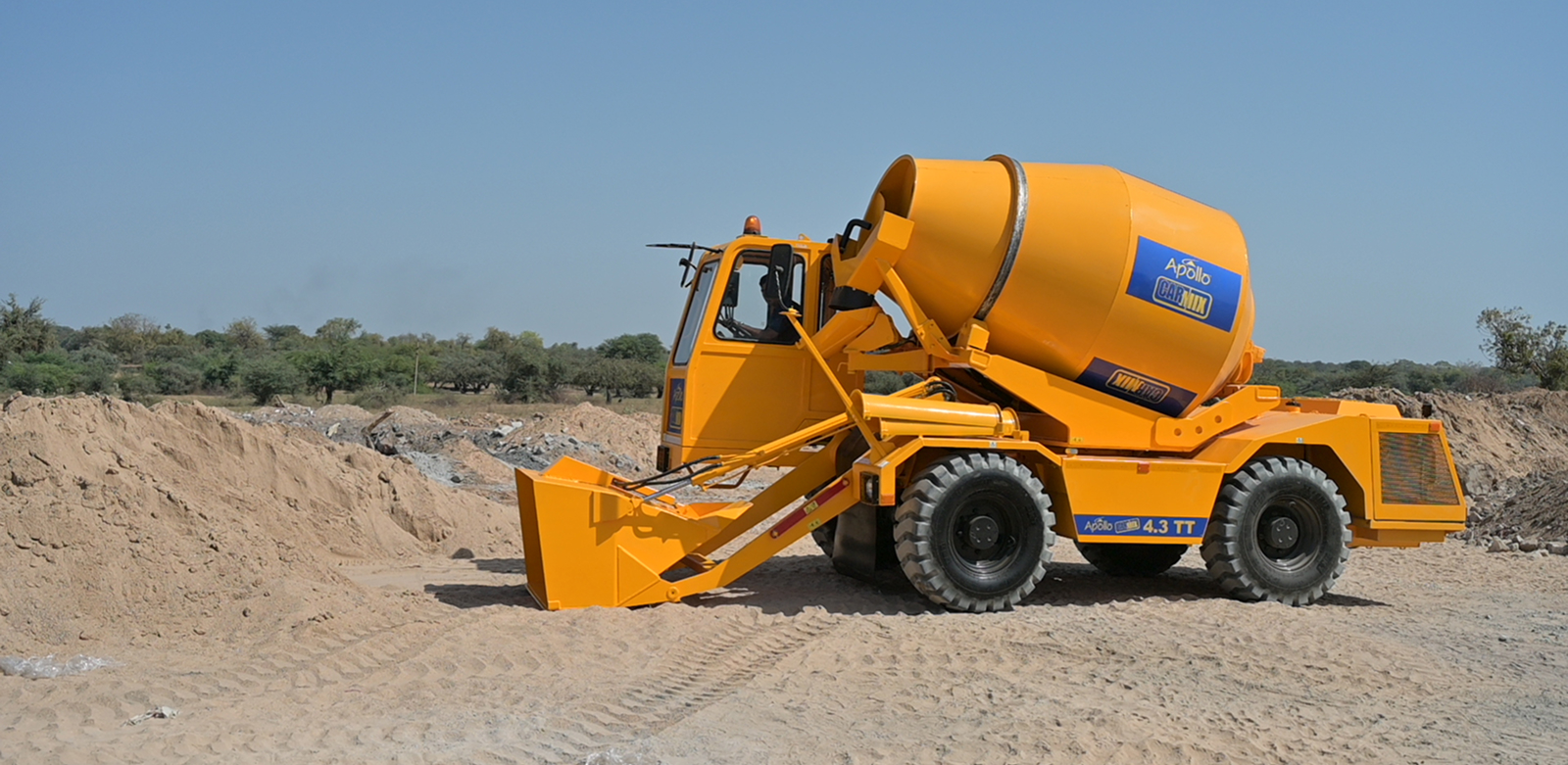

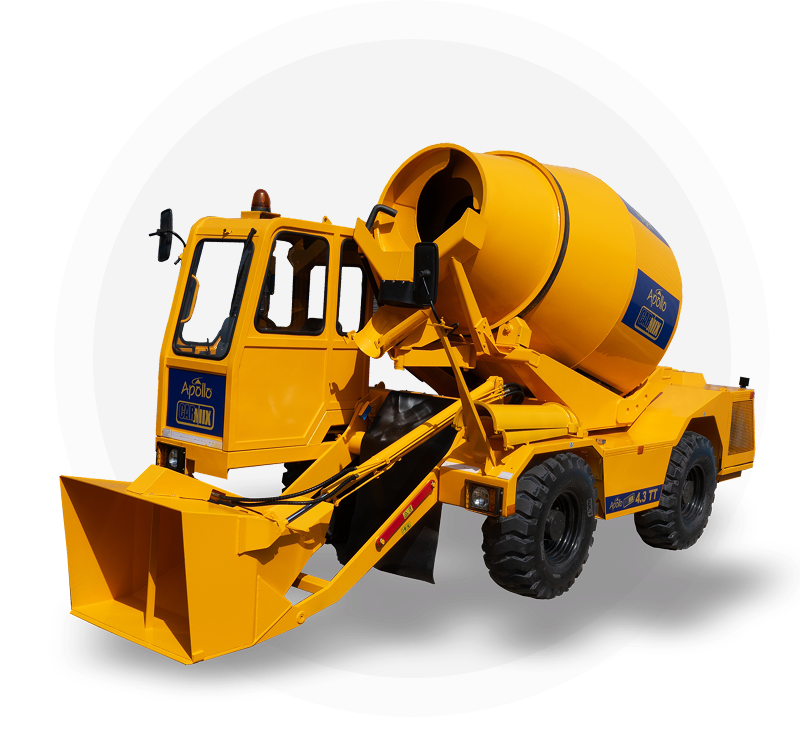

When productivity meets precision, you get the Apollo Carmix 4.3 TT - a high-performance Self-Loading Concrete Mixer crafted to take on India’s toughest construction demands. Designed through a joint venture between Apollo Inffratech and Carmix Italy, the 4.3 TT is your all-in-one solution for on-site concrete production, mixing, and discharge.
270° Drum Rotation to discharge concrete on all 4 sides of the machine.
Joystick Operations for all main functions of loader for operators ease.
Easily Accessible Engine compared to various other mixers available in the market.
Ground control through Remote for Drum Swivel, Drum Mixing & Discharge, Discharge Chute Up/Down and Auto Water Cut-off as per requirement. (4.3 TT only)
Double Helical Arrangement with low inclination of drum for better mixing.
Height and inclination angle adjustable Ecomatric Panel, comfortable for operator.
V-Shape articulated bucket with Hydraulic Shutter Gate to avoid spillage & better loading.
Italian Front loading technology - Driver visibility increase and you can discharge material on all 4 sides of the machine.
Drum Angle - it is set in such a away that it don't have to lift the drum At the time of discharge.
Compact and fully mobile concrete production.
Mixing Unit:
Drum Volume Capacity per batch 5800 ltrs., 4.3 Cu.M.
Drum Rotation:
270°
Engine:
112 HP Turbocharged Mahindra, Water cooled
Shovel:
600 ltrs with hydraulically operated shutter gate
Tyres:
16/70-20 PR 16 (Off-road)
Water Tank:
2 x 400 Ltrs
Speed:
Electric Servo Control 0 to 9 Kms/hr (Working), 0 to 26 Kms/hr (Road)
Weight:
Equally distributed on both axles 8060 Kgs
IoT Connectivity for
remote diagnostics
Load Cell for
batch accuracy
Rear View Camera
with display
| Feature | Benefit |
|---|---|
| Drum Rotation | 270° with Remote Control |
| Cabin Comfort | ROPS-FOPS cabin with joystick |
| Mixing Precision | Loadcell & Auto Water Cutoff (Optional) |
| Engine | Turbocharged Mahindra 112 HP |
| Ground Controls | Yes (Remote for mixing/drum) |
| Brand Assurance | Apollo + Carmix |
A. Up to 4.0 Cu.M per batch, ideal for on-site concrete production.
A. Yes, the drum rotates 270°, allowing discharge on all four sides.
A. Yes, drum swivel, mixing, discharge, and chute functions can be remotely controlled.
A. It’s built for off-road conditions, with heavy-duty tyres and balanced weight.
A. The cabin is ROPS-FOPS certified, enclosed, and equipped with joystick control.
A. Yes, it features a 12V electric system with safety battery cut-off.
A. Yes, the 4.3 TT offers an auto water cut-off system for precision.
A. Yes, IoT integration is optional for remote monitoring.
A. Pan-India service support, operator training, spare availability, and AMC.
